Basket filter is a small equipment for removing a small amount of solid particles from liquid. It can protect the normal operation of compressors, pumps, instruments and other equipment. When the fluid enters the filter cartridge with certain specification of filter mesh, its impurities will be blocked and the clean filtrate will be discharged from the filter outlet. And when it is needed to be cleaned, it is only necessary to take out the removable cartridge and reinstall it after processing, so it is extremely convenient to use and maintain it.

Its function is to filter mechanical impurities in the media. It can filter rust, sand in sewage, a small amount of solid particles in the liquid, etc. to protect the accessories on the equipment pipeline from wear and blockage, and to protect the normal operation of the equipment. The basket filter is generally flange-connected.

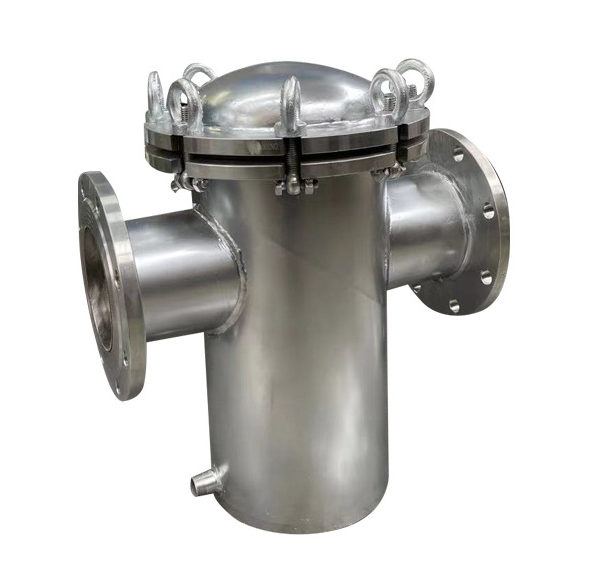

Basket filter

1.Nominal diameter:DN25-DN700

2.Working temperature:-30℃-200℃

3.Filtration precision(mesh):10-300

4.Seal material: NBR, Viton, oil-resistant asbestos

5.Working pressure:1.0Mpa,1.6Mpa

6.Main material: carbon steel, stainless steel 201, 304, 316

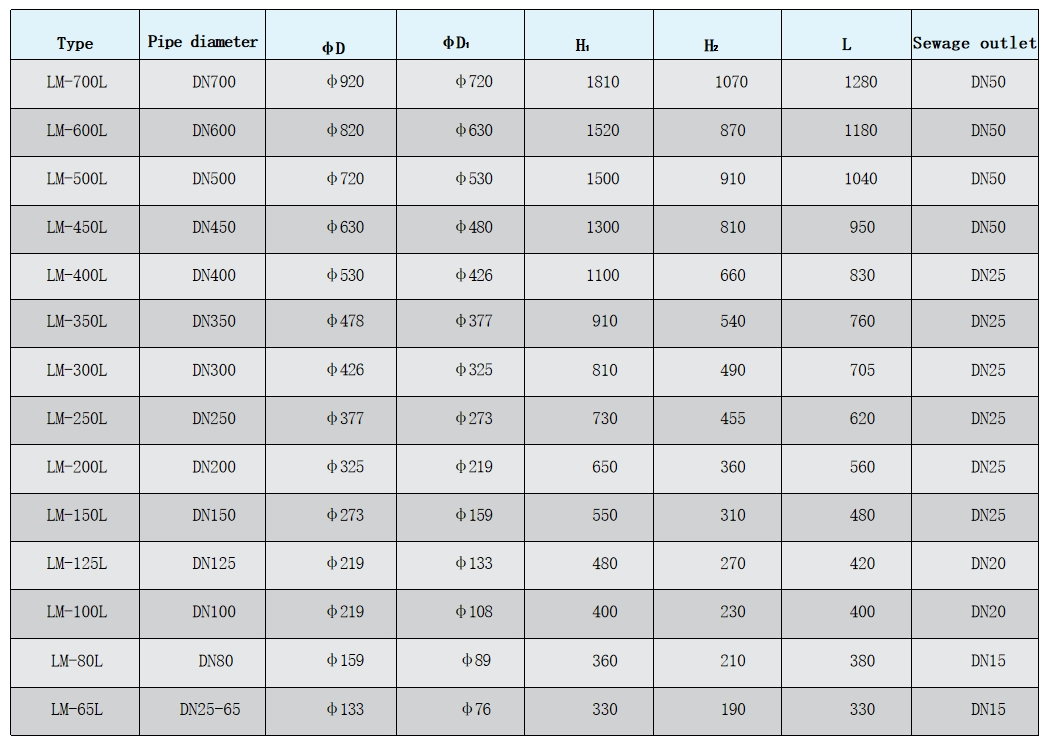

Product Parameters
