Ultra-strong NdFeB Halbach array, N52, 48H, 38UH, 35EH generator magnets, permanent NdFeB arc magnet components

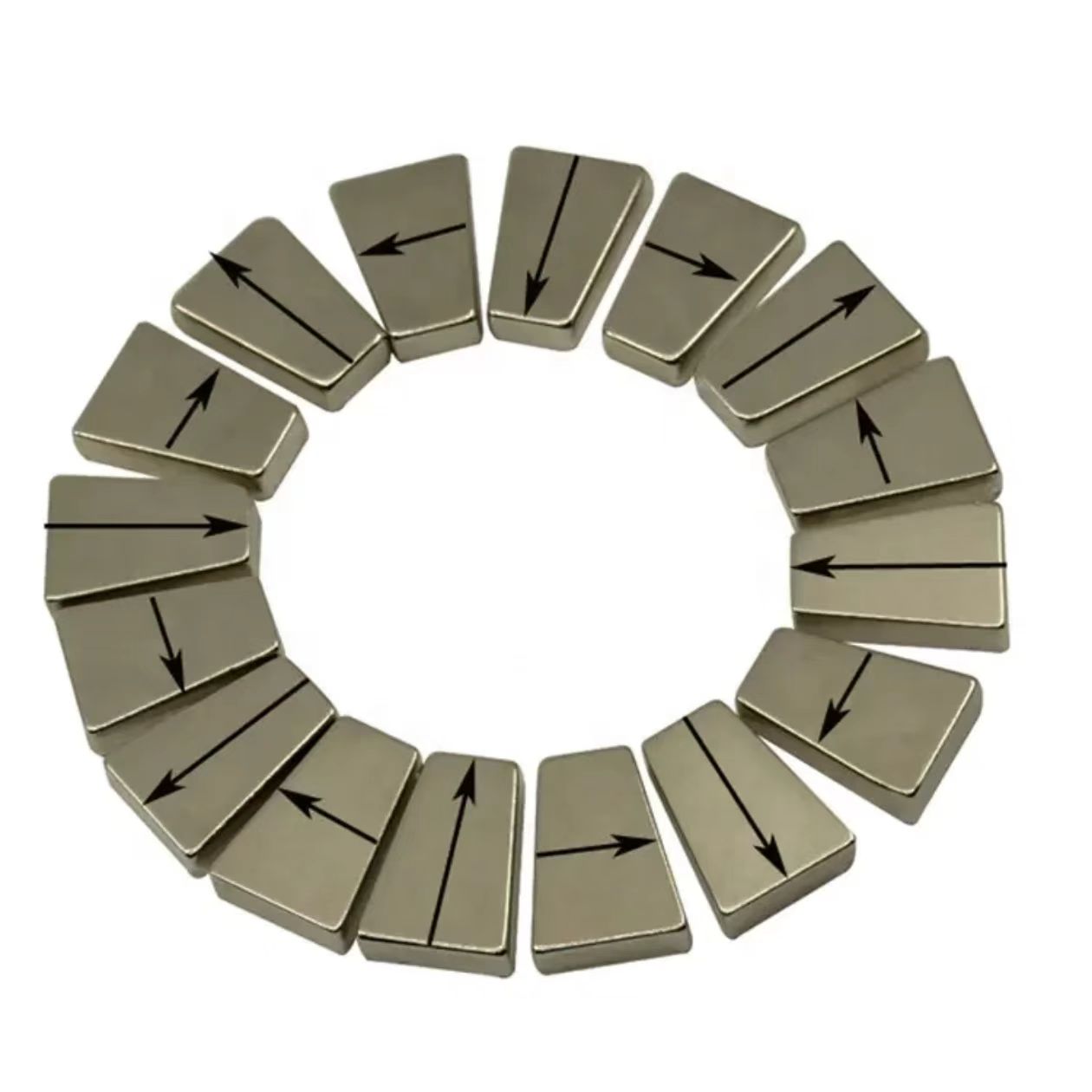

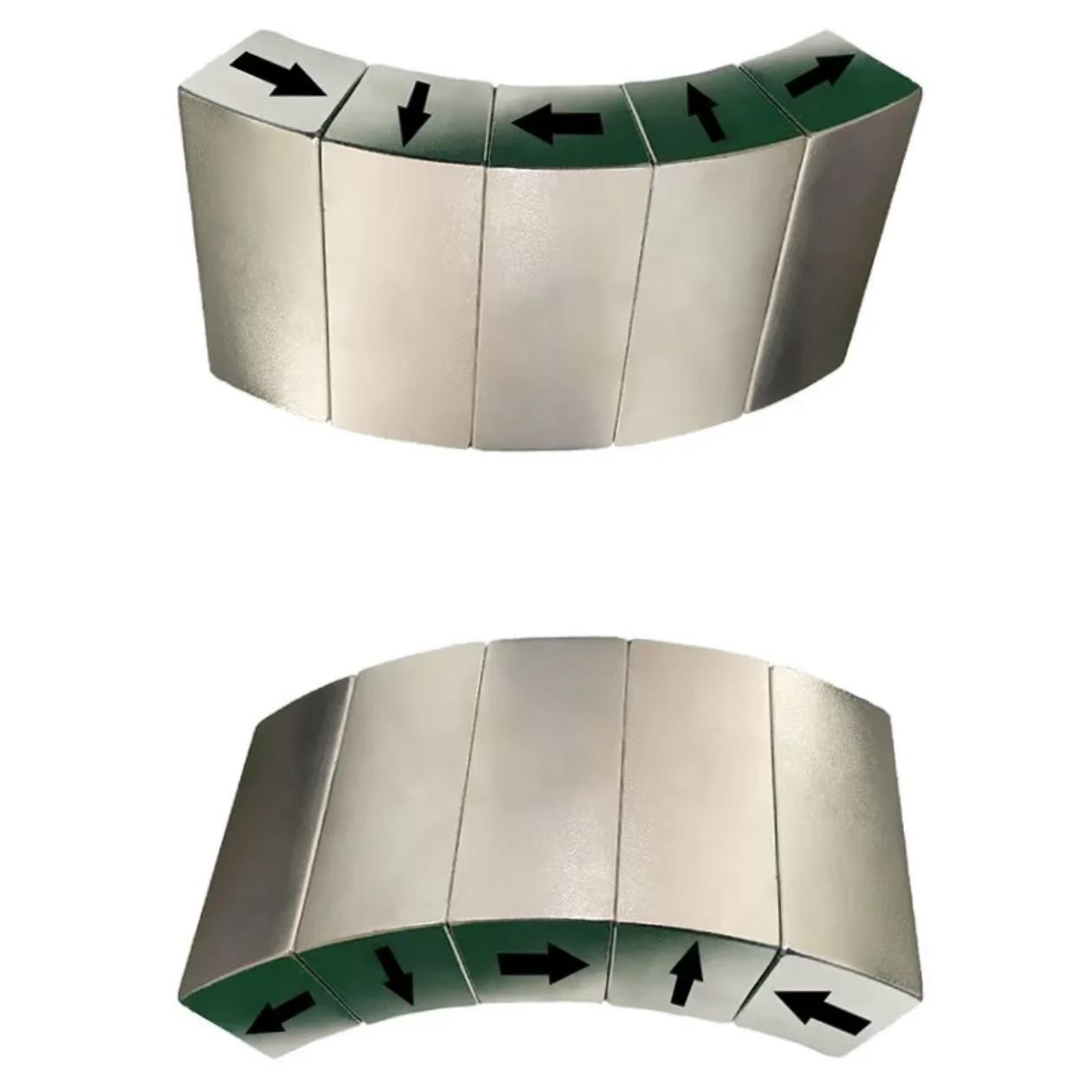

1. What is Halbach array?

The Halbach array is a special arrangement of permanent magnets that enhances the magnetic field on one side of the array and reduces it to near zero on the other side. This is achieved by spatial rotation of the magnetization.

The Halbach array generates a high and uniform magnetic field in a certain area, and its magnetic field can also exceed the remanence of the magnetic material itself.

2.Product material: Halbach array + Al/Cu

3.Coating: Zn, NiCuNi, or customized

4.Magnet grade: High-grade motor magnets can be customized

33H~48H, 30UH~38UH, 30EH~35EH

5.Customized shape: wedge, trapezoid, arc,rectangle, block/square piece, cylinder/disc, ring/tube, fan/brick/arc, special shape

6.Working temperature: ≤230℃

7.Application areas:

Linear Halbach arrays:

High-tech applications include brushless AC motors, voice coils, magnetic drug targeting, and oscillating magnets for particle accelerators and free electron lasers.

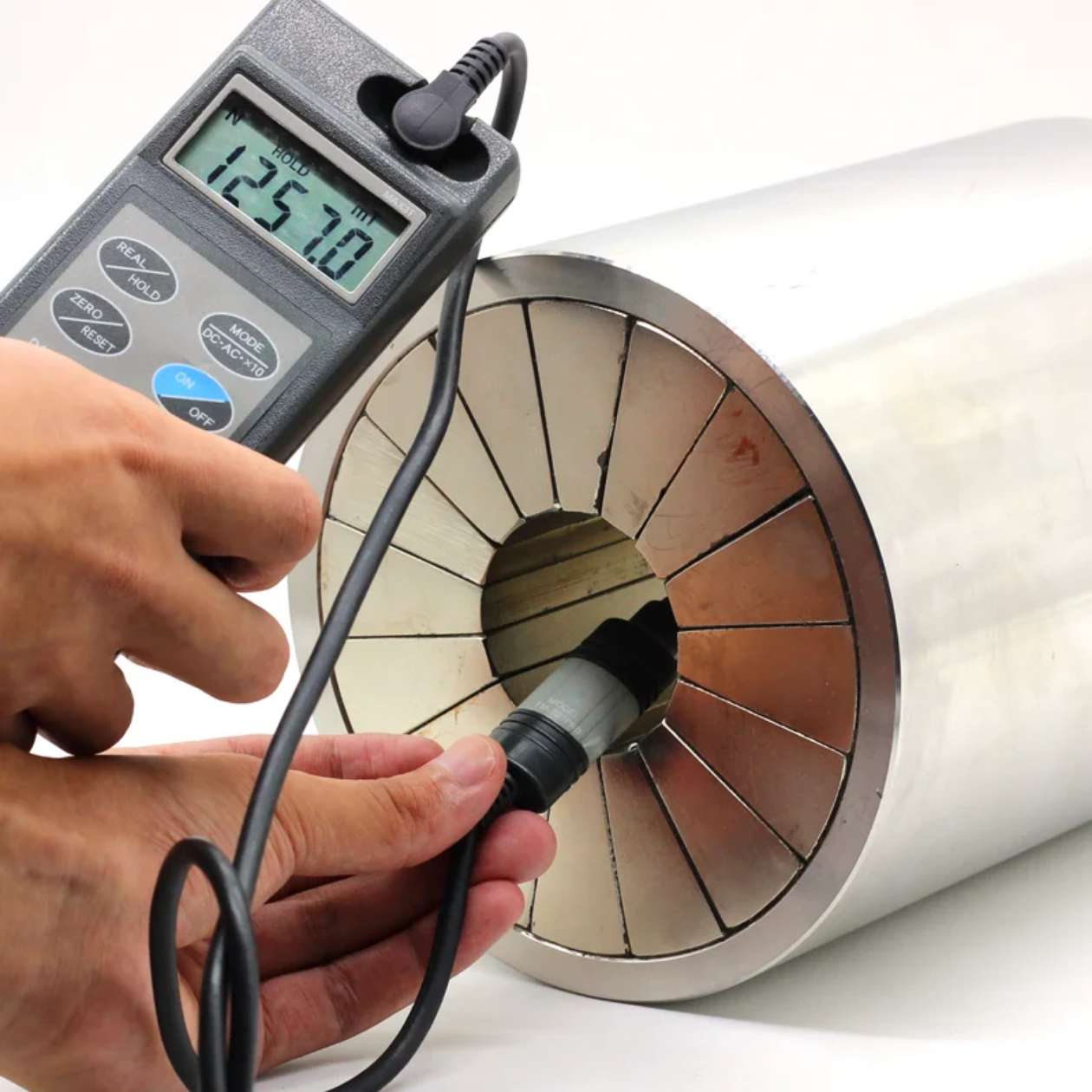

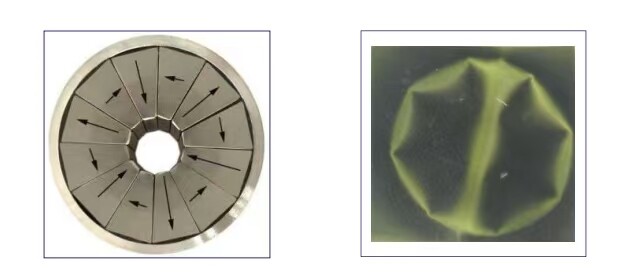

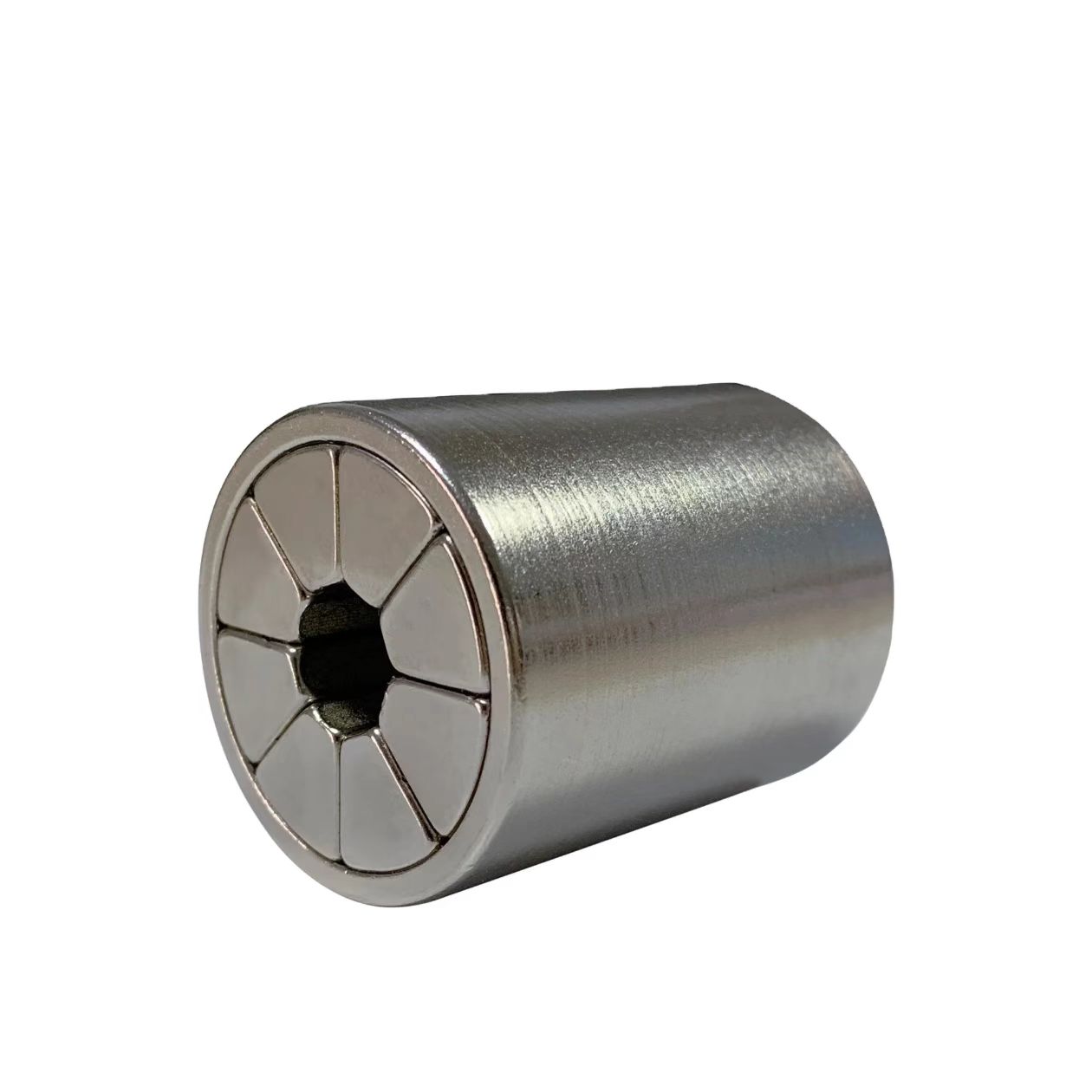

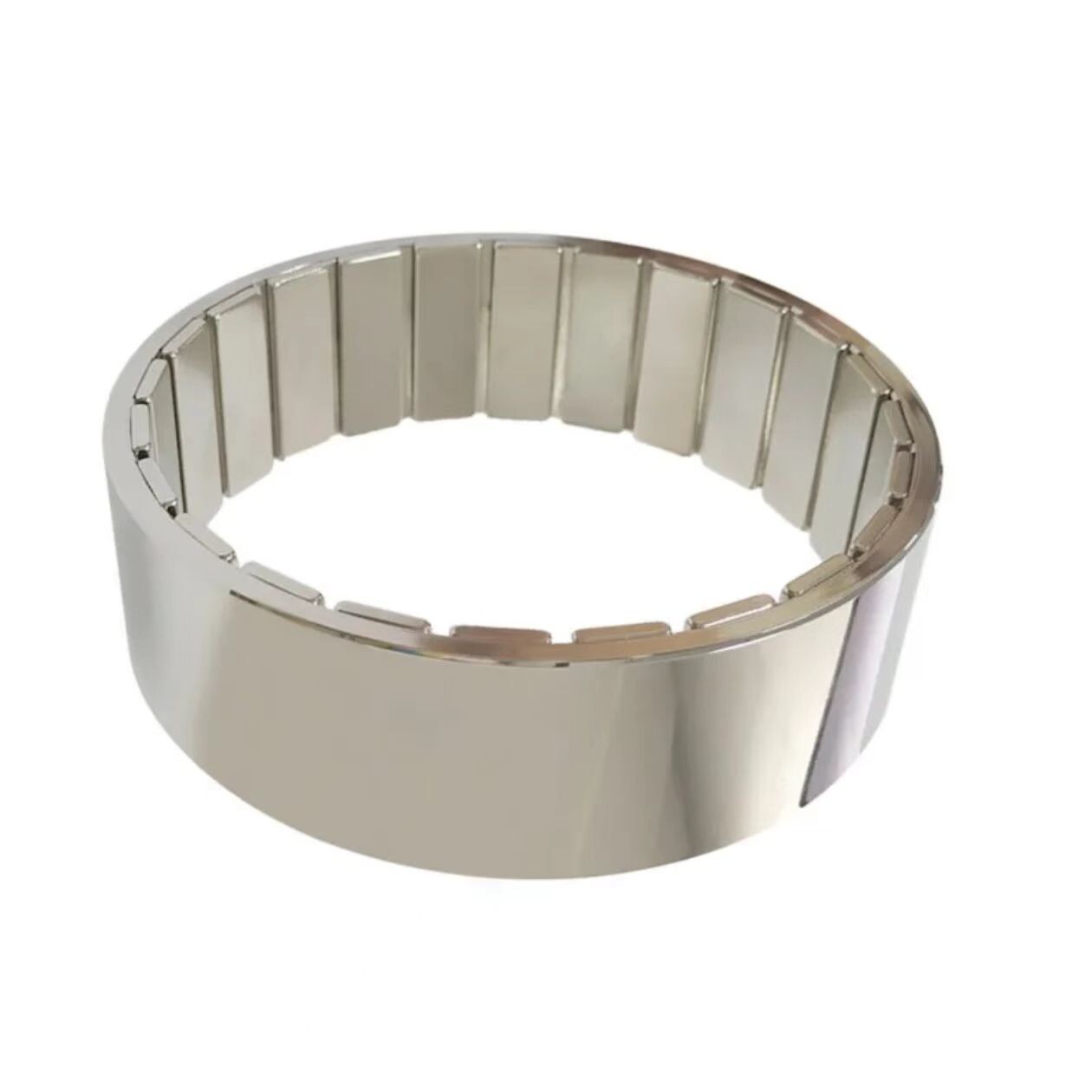

Cylindrical Halbach arrays:

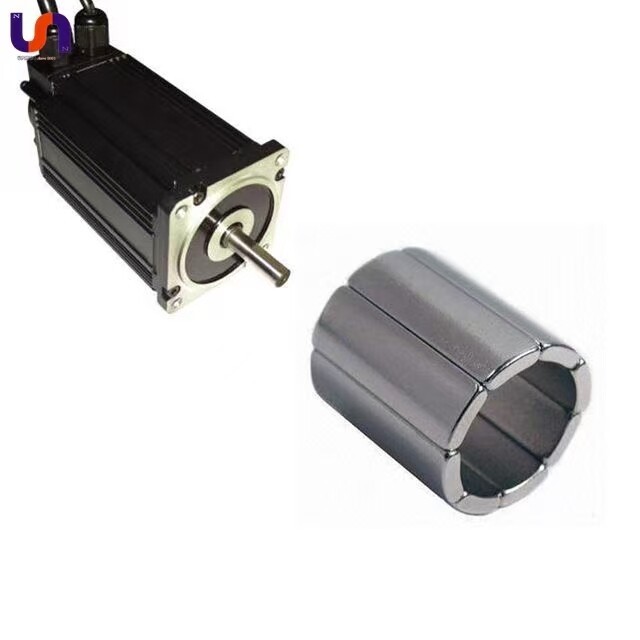

Brushless AC motors, magnetic coupling, and high magnetic field cylinders.

8.Halbach array magnet packaging

-Orient the magnet according to customer requirements.

-After orientation, magnetize the magnet according to the orientation direction.

-After magnetization, fix the magnet on Al or brass with glue.

-Packing, shielding with iron sheet.

-Put it on the pallet, wrap the film, and tie it tightly.

-Magnetic Isolation Packaging: Foam separator and galvanized iron box protect the magnets and act as a magnetic shield.
