Drawer Type Iron-Remove
Brand：Saint Langma
Place of Origin：Beijing China
Shape：Customized
Dimensions：Customized
Delivery time：7-25 working days
EMAIL
MESSAGE
PRODUCT DESCRIPTION

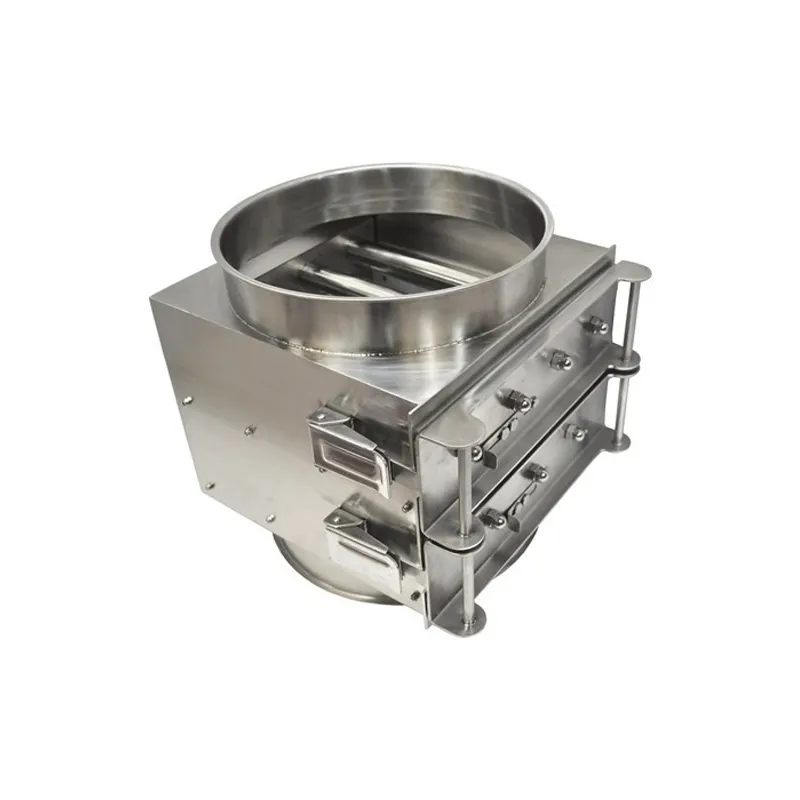

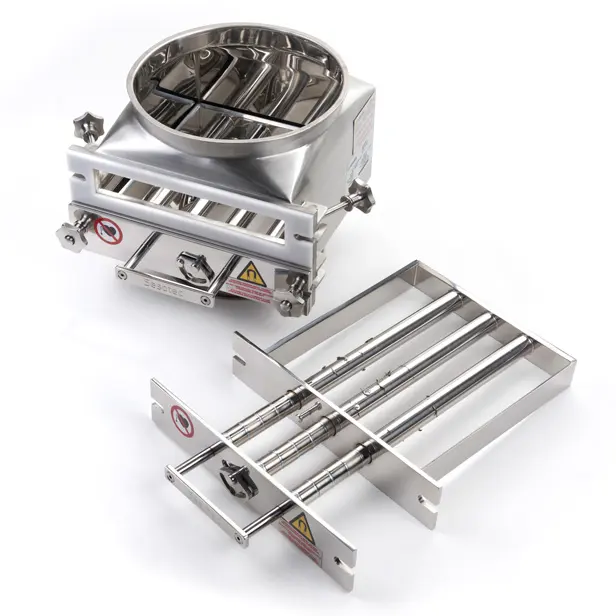

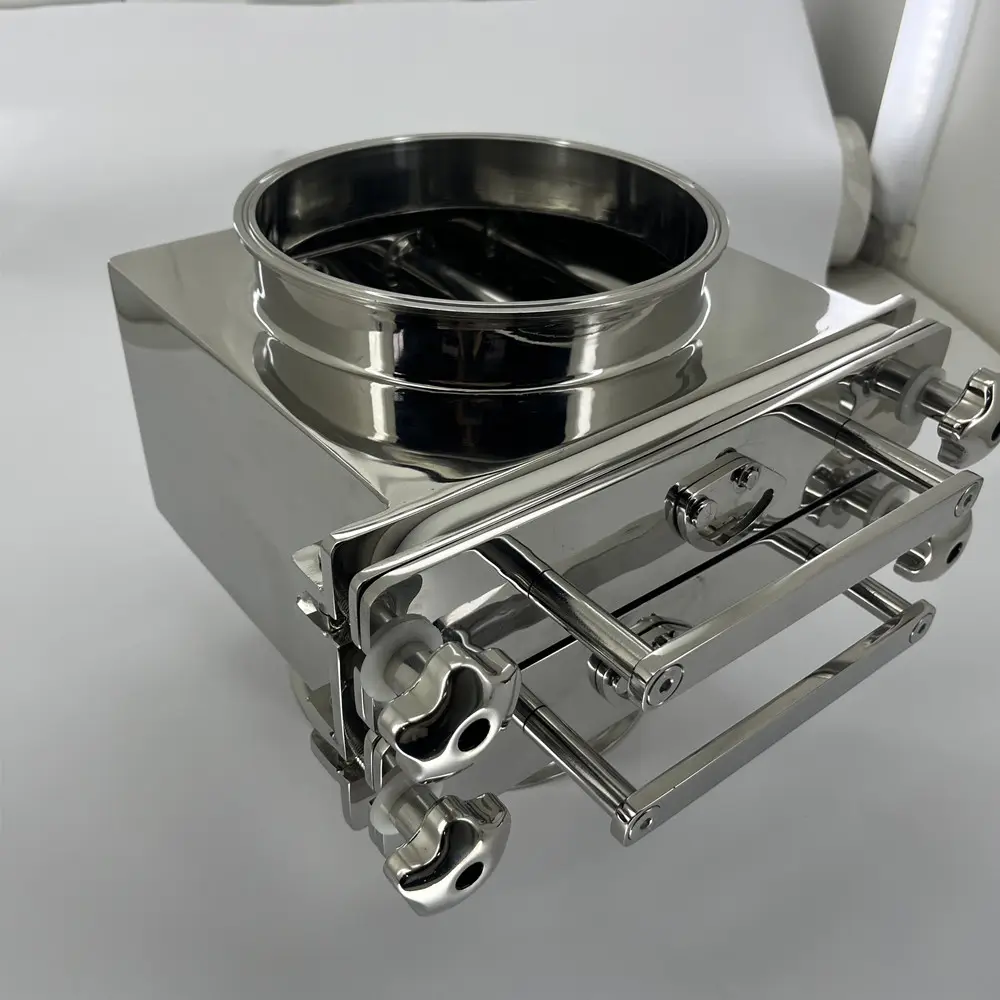

The drawer-type iron remover is composed of a permanent magnetic frame and an outer stainless steel box, which can be directly installed on the powder pipeline and chute where the material passes. The permanent magnet frame uses single-layer or multi-layer cross-arranged ultra-strong rare earth permanent magnet rods, which can effectively remove small iron (up to 12.5mm) contaminants mixed in free-falling powder or granular materials, improving product quality. purity. According to customer needs, it can be designed as manual cleaning, manual scraper cleaning, or automatic cleaning.

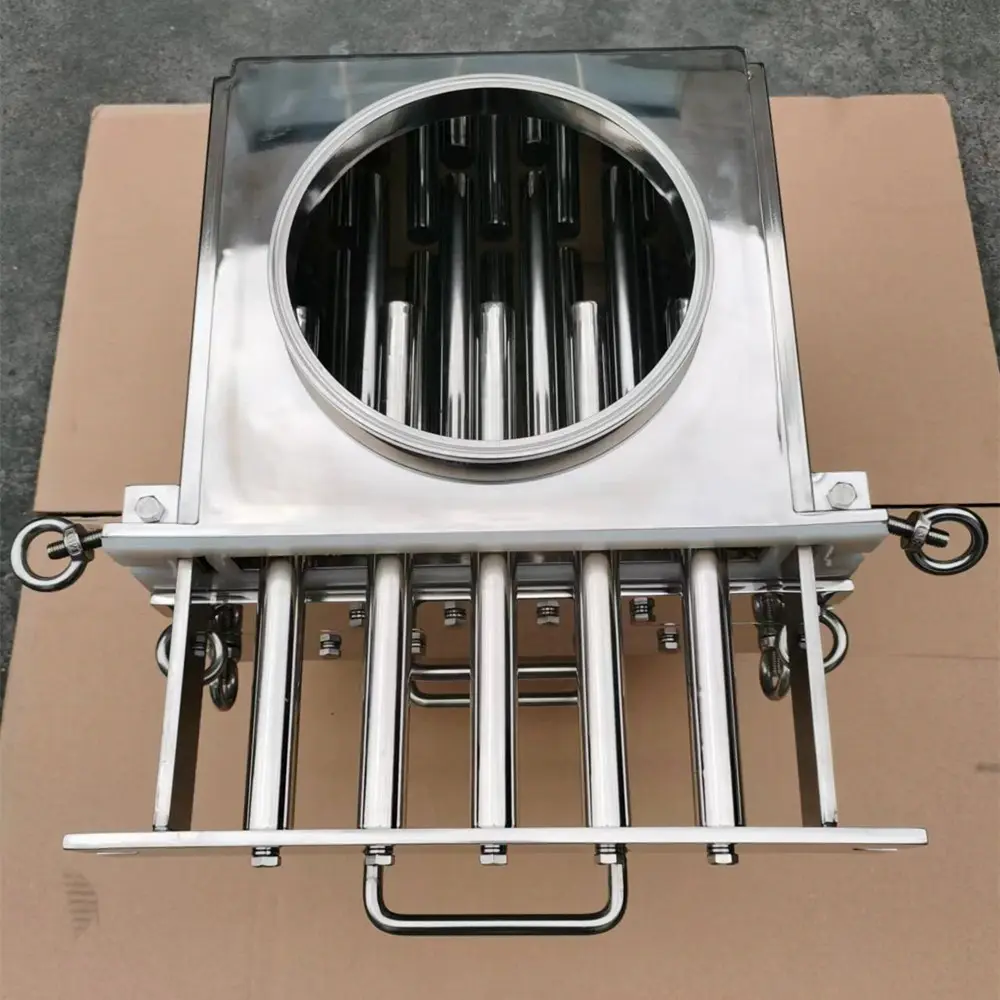

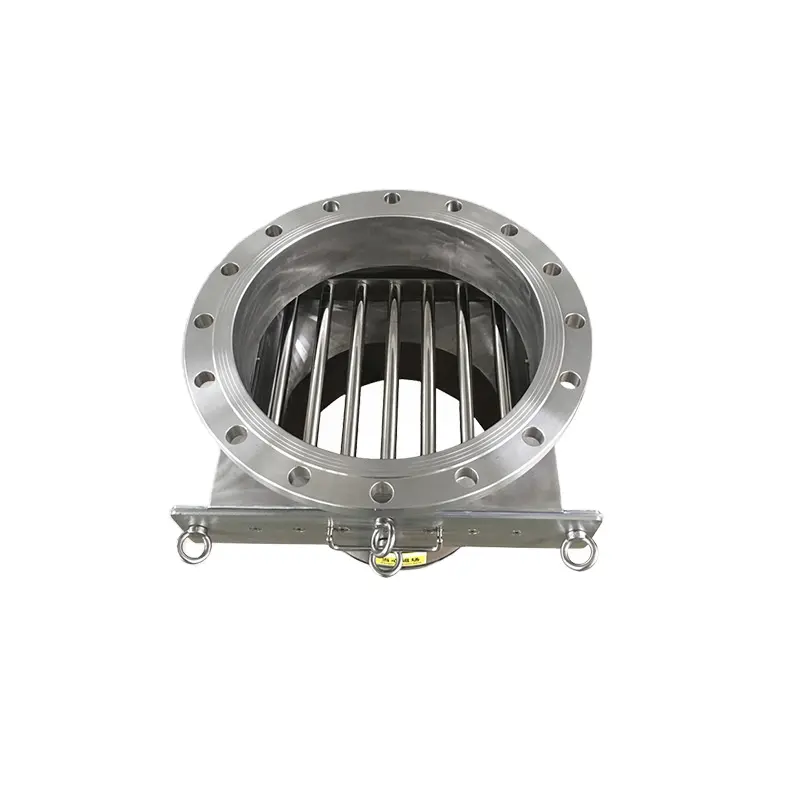

It is designed to allow quick and easy removal of the tramp of metals in adjusted intervals, virtually no reduction in product flow rate, and easy installation with the connection of flange or ferrule. In manual cleaning system, the operator pulls out the drawer by holding the handles in the front of the housing.


FEATURES

1.Magnetic induction intensity can reach 12000GS (ordinary type), and 8000GS (easy-to-clean type).
2.The type of product’s standard operating temperature can reach 80℃, and the high-temperature requirement can reach 350℃.
3.Easy to clean, drawer-type design makes it easy to clean adsorbed iron impurities.
4.Environmentally friendly and safe, various forms are used to avoid dust leakage, ensure the working environment of workers, and facilitate the switching and cleaning of attracted iron impurities. Some magnetic bars are also designed to be removable. Pull out the magnetic bar, and the iron impurities attached to the stainless steel pipe without magnetism will automatically fall off.

5.Customizable: It can be integrated into the production line in various sizes and connection methods, and different magnetic rod materials can be selected according to different requirements such as iron removal and temperature economy.


APPLICATIONS

This equipment is suitable for removing small particles of miscellaneous iron from a variety of dry powder-free falling materials.
1.Battery positive and negative materials
2.Plastic and rubber industry
3.Refractory materials
4.Chemical industry
5.Medicine
6.Ceramics
7.Food,etc.




WHY CHOOSE US

Beijing Saint Langma Technology Group Co., Ltd.. Saint Langma was founded in 1995, formerly known as Beijing Langma Electric Power Research Institute, with its headquarters in Zhongguancun Science Park, Beijing. It is a national high-tech enterprise in China and a specialized and refined enterprise in Beijing.
Saint Langma is a leading manufacturer of rare-earth permanent magnetic materials and innovative magnetic solutions. We specialize in custom sintered NdFeB magnets for high-performance applications, including motor magnets (EVs, UAV, robotics) and precision sliced magnets (as thin as 0.2mm with ±0.02mm tolerance). With decades of expertise, we specialize in delivering high-performance sintered NdFeB (neodymium iron boron) magnets and precision-engineered magnetic devices tailored to meet the exacting demands of global industries.

Outstanding Advantages

Permanent magnet research and development
Saint Langma has an independent permanent magnet R&D center and has established cooperation with various scientific research institutions and university laboratories in China to help the innovative development of permanent magnets.

Product Quality

Saint Langma's rare earth permanentmagnetmaterials, in addition to being usedin 3C,automobiles UAV, evtol, humanoid robots..., also serve the militaryindustry,nuclear power, thermal power, etc., andprovidemagnetic filtration solutions for China's46nuclearpower units.
