Complete product specifications

Support customization

‹

›

‹

  • Automatic self-cleaning filter

›

Automatic self-cleaning filter
Brand：Saint Langma
Place of Origin：Beijing China
Delivery time：20-45 working days
Application：Industrial Magnet
Grade：Neodymium magnet
EMAIL
MESSAGE
PRODUCT DESCRIPTION
The fully automatic self-cleaning filter is a precision device that uses a filter mesh to directly intercept impurities in the water to purify the water quality and protect the normal operation of other equipment in the system. Water enters the self-cleaning filter body from the water inlet. Due to the intelligent (PLC, PAC) design, the system can automatically identify the degree of impurity deposition and automatically discharge the sewage by giving the sewage valve a signal. The fully automatic self-cleaning filter overcomes many shortcomings of traditional filtering products, such as small dirt-holding capacity, susceptibility to clogging by dirt, the need to disassemble and clean the filtering part, and the inability to monitor the filter status,etc. It has the function of filtering raw water and automatically cleaning the filter cartridge and discharging the sewage. The system supplies water uninterruptedly during cleaning and drainage. And it can monitor the working status of the filter, with a high degree of automation. It covers the needs of various filtration precision from 50μm to 3000μm, and provides various water filtration equipments for customers.
Product Working Principle
The water to be treated enters the machine body from the water inlet, and the impurities in the water are deposited on the stainless steel wedge-shaped net, which generates the pressure difference. The filter monitors the change of the pressure difference between the inlet and outlet through the pressure difference switch. When the pressure difference reaches the set value, the electronic controller sends a signal to the control valve and the drive motor, triggering the following actions: the motor drives the brush to rotate to clean the filter cartridge, and the control valve opens to drain the sewage. The whole cleaning process only takes tens of seconds. When the cleaning is completed, the control valve is closed, the motor stops rotating, the system returns to its initial state, and begins to enter the next filtering process.
Product advantages
1. Simple design structure.
Short backwashing time, large flow rate, small pressure loss (≤0.018MPa).
3.Self-cleaning control mode is divided into differential pressure, time and manual.
4. The equipment can be connected with DCS system.
5. High-precision filtration, stable effluent water quality, sewage water consumption <1%.
6. The filter can be used for life without replacement.
7. Long service life.
8. Applicable to different raw water quality and water use requirements.
9. Few wearing parts, no consumables, low operating costs, simple operation and management.

10. Automatic backwashing without stopping the flow.

Application Range

1.Metallurgy: continuous casting water, high-pressure phosphorus removal water, clean circulating water, cooling water full filtration, bypass filtration, nozzle protection, etc..

2.Electric power: turbine cooling water filtration, wet electric dust removal circulating grey water filtration, dust reduction nozzle protection, cooling tower water full filtration and bypass filtration.

3.Agriculture: sprinkler irrigation, drip irrigation water treatment.

4.Others: iron and steel, petroleum, chemical, electronics, textile, papermaking, food, pharmaceutical, automotive industry, etc.

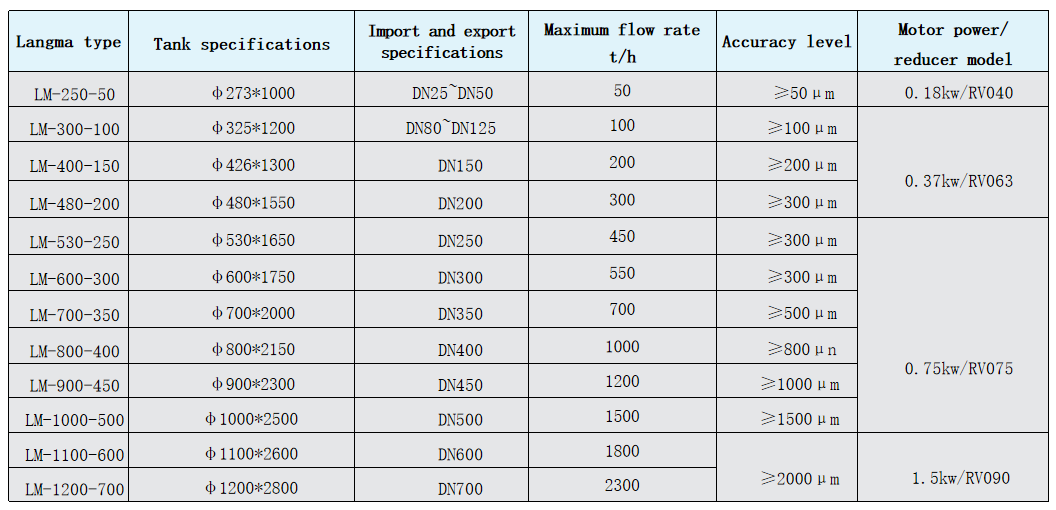

Vertical automatic self-cleaning filter technical specification sheet


WHY CHOOSE US

Beijing Saint Langma Technology Group Co., Ltd.. Saint Langma was founded in 1995, formerly known as Beijing Langma Electric Power Research Institute, with its headquarters in Zhongguancun Science Park, Beijing. It is a national high-tech enterprise in China and a specialized and refined enterprise in Beijing.
Saint Langma is a leading manufacturer of rare-earth permanent magnetic materials and innovative magnetic solutions. We specialize in custom sintered NdFeB magnets for high-performance applications, including motor magnets (EVs, UAV, robotics) and precision sliced magnets (as thin as 0.2mm with ±0.02mm tolerance). With decades of expertise, we specialize in delivering high-performance sintered NdFeB (neodymium iron boron) magnets and precision-engineered magnetic devices tailored to meet the exacting demands of global industries.

Outstanding Advantages

Permanent magnet research and development
Saint Langma has an independent permanent magnet R&D center and has established cooperation with various scientific research institutions and university laboratories in China to help the innovative development of permanent magnets.

Product Quality

Saint Langma's rare earth permanentmagnetmaterials, in addition to being usedin 3C,automobiles UAV, evtol, humanoid robots..., also serve the militaryindustry,nuclear power, thermal power, etc., andprovidemagnetic filtration solutions for China's46nuclearpower units.
